Demystifying Code: The Binary Bridge

🧠 From Code to Machine: The Layers

In this guide, we’ll follow a basic XOR operation as it transforms from human-readable logic into electrical operations at the processor level. This is where code becomes data — and where the illusion of abstraction breaks down.

We’ll look at:

1. High-Level Code (Python, C)
2. Assembly Instructions (x86)
3. Machine Code (Hexadecimal and Binary)
4. Physical Execution (What transistors do)

---

1. 🧾 High-Level Code (What We Write)

Python — Abstract and Friendly

def xor(a, b):
    return a ^ b

• Result: xor(5, 3) → 6
• Explanation: Binary: 101 ^ 011 = 110

C — Closer to the Metal

int xor(int a, int b) {
    return a ^ b;
}

• The same operation, but compiled into native machine instructions.

---

2. 🛠 Assembly Code (What the CPU Almost Understands)

Once compiled from C, this function turns into x86-64 assembly:

xor:
    mov eax, edi  ; Move a (1st arg) into eax
    xor eax, esi  ; XOR with b (2nd arg)
    ret           ; Return result

• Registers: eax holds the result, edi and esi are arguments.
• The core XOR is a single native instruction: xor eax, esi

---

3. 💾 Machine Code (What the CPU Actually Sees)

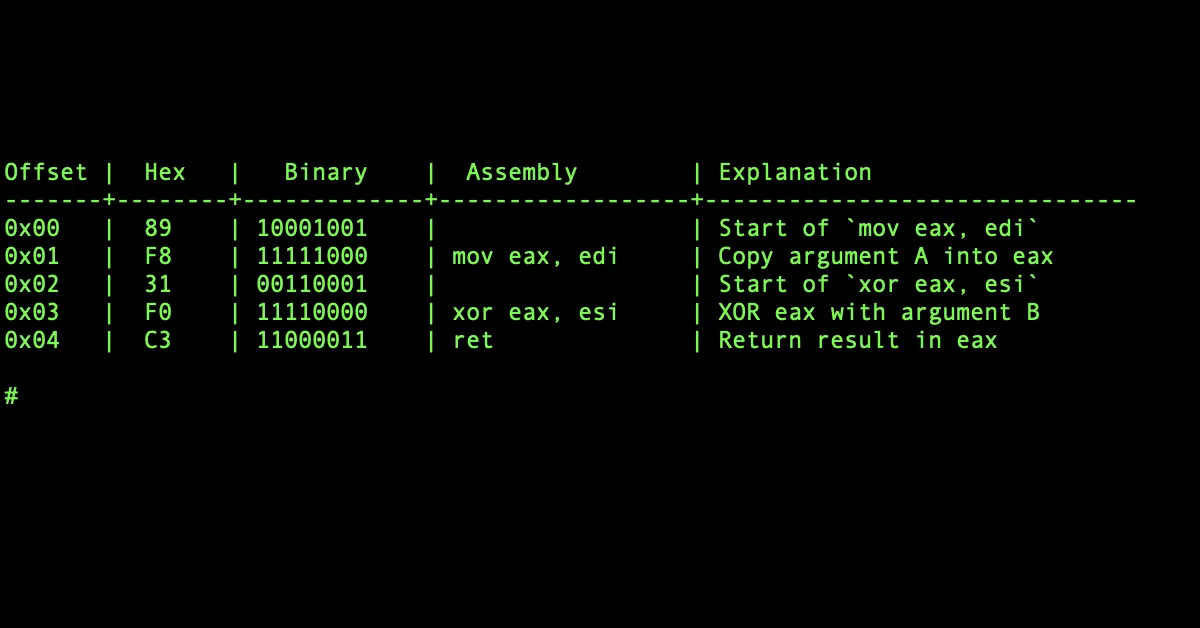

The compiled version becomes raw bytes:

89 F8 31 F0 C3

Byte(s)	Binary	Instruction
89 F8	10001001 11111000	mov eax, edi
31 F0	00110001 11110000	xor eax, esi
C3	11000011	ret

This is pure binary. No comments, no functions — just data.

---

4. ⚡ Transistor Logic (What the CPU Really Does)

Every byte from above is fetched and interpreted:

1. 89 F8 — copy edi → eax
2. 31 F0 — XOR eax with esi
3. C3 — return the result

Under the hood, XOR is implemented in silicon as:

A XOR B = (A AND NOT B) OR (NOT A AND B)

Billions of tiny transistors perform this operation using voltage states. These gates are hardwired into the CPU.

---

🔍 Why This Matters

• The same logic works across languages.
• XOR takes 1 line in Python, 1 instruction in Assembly, and 1 gate in hardware.
• All abstraction layers are illusions — code is data.

Python Code	C Code	Assembly (x86-64)	Hex Bytes	Binary
a ^ b	a ^ b	mov eax, edi	89 F8	10001001 11111000
		xor eax, esi	31 F0	00110001 11110000
		ret	C3	11000011
